Hithium 1175AH

Name: Hithium 1175AH
SKU: HITHIUM-MC1175P025A
Price: 350.00 USD
Availability: InStock

$350.00

1175Ah LFP prismatic cell from HiTHIUM. 3.2V nominal, 3760Wh energy, 20.4kg. Designed for utility-scale energy storage and industrial applications.

56 in stock

Important: This cell is intended for use in protected battery packs. Improper handling can result in fire, explosion, or injury. Review the Battery Safety Section below before purchasing or using this product.

SKU: HITHIUM-MC1175P025A Category: LiFePO4 Cells Tags: 1175ah, energy-storage, hithium, large-format, lfp, LiFePO4, prismatic

Hithium 1175AH 1175Ah LFP Prismatic Cell

The HiTHIUM 1175Ah is a large-format prismatic lithium iron phosphate (LFP) cell designed for utility-scale energy storage systems and industrial applications. With 3760Wh of nominal energy per cell and an exceptional cycle life it is one of the highest capacity prismatic LFP cells available.

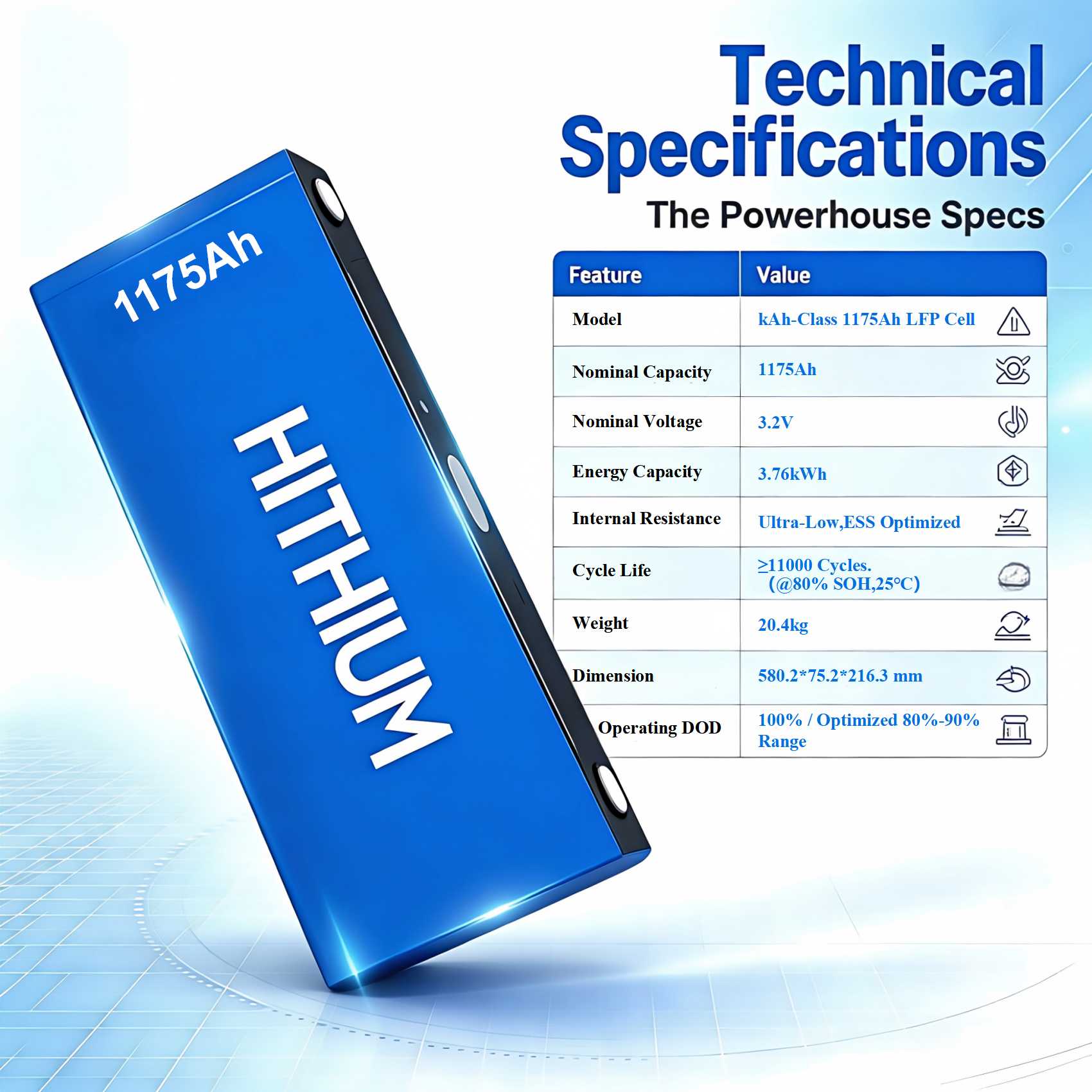

Technical Specifications

Specification	Value
Model	MC1175P025A
Manufacturer	HiTHIUM
Chemistry	LFP (Lithium Iron Phosphate)
Nominal Capacity	1175Ah
Nominal Voltage	3.20V
Nominal Energy	3760Wh
Operation Voltage	2.5–3.65V (T>0°C) / 2.0–3.65V (T ≤ 0°C)
Weight	20.4 ± 0.50 kg
Impedance (1kHz)	0.23 ± 0.05 mΩ
Energy Density	≈180 Wh/kg
Self-Discharge	≈3.0% per month
Nominal Charge Power	0.25P
Nominal Discharge Power	0.25P
Discharge Temperature	-30°C to 60°C
Charge Temperature	0°C to 60°C
Dimensions (L x W x H)	581.10 x 75.22 x 216.31 mm

Safety Warning for Lithium Battery Usage

Customers should have a clear understanding of lithium battery handling and safety before making a purchase. Lithium batteries are highly sensitive and may pose fire, burn, or explosion risks if improperly handled. Always charge batteries on fire-resistant surfaces and never leave them charging unattended. By purchasing you assume full responsibility for any injury damage or loss arising from the incorrect use or handling of lithium batteries or chargers.

Cell Specification

Item	Specification and comments
Cell type	Lithium iron phosphate (LFP) prismatic cell, tab-to-tab design
Nominal capacity	1175Ah
Nominal voltage	3.2V
Nominal energy	3.76kWh
Operating voltage range	2.5–3.65V
Standard charge current	0.5C (587.5A)
Maximum continuous charge current	1C (1175A)
Standard discharge current	0.5C (587.5A)
Maximum continuous discharge current	1C (1175A)
Peak discharge current	2C (2350A) for short duration (refer to datasheet limits)
Recommended charge temperature	0–55°C
Recommended discharge temperature	-20–55°C
Storage temperature (long term)	-20–35°C, SOC 30–50%
Cycle life	>6000 cycles at 25°C, 80% DOD, remaining capacity ≈80%
Cell weight	≈69kg (typical, see drawing)
Ingress protection	IP67 (when properly assembled in pack as specified)
Compliance	Meets IEC62619, UL9540A and UN38.3 requirements

Download Manufacturer data sheet

Battery Safety

Battery Safety & Product Disclaimer

Read before purchasing or using any rechargeable lithium-ion battery.

Rechargeable lithium-ion batteries are high-energy devices that require proper handling and technical knowledge. Improper use can lead to fire, explosion, thermal runaway, serious injury, property damage, or death.

By purchasing products from CH-AmpX, you acknowledge these risks and agree to use all battery products responsibly and in accordance with manufacturer specifications.

Read the Complete Battery Safety Guide

Is This Product Right for You?

CH-AmpX battery cells are intended for:

Professional battery pack builders
Engineers and product developers
Industrial applications
Qualified hobbyists familiar with lithium-ion battery technology

These cells are designed to be integrated into battery packs protected by an appropriate Battery Management System (BMS) or Protection Circuit Board (PCB).

They are not intended for standalone consumer use, vaping devices, e-cigarettes, or any application lacking proper battery protection.

Before Every Use

Always inspect every battery before charging, installing, or transporting it.

Do not use any battery that shows signs of:

Damaged or torn PVC wrapping
Missing insulator ring
Dents or crushed casing
Swelling or bulging
Leakage
Corrosion
Burn marks or overheating

Using a damaged cell significantly increases the risk of battery failure.

Safe Charging Practices

Battery safety begins with proper charging.

Always:

Use a charger designed for lithium-ion batteries.
Confirm the charger matches the battery's voltage specifications.
Charge on a non-flammable surface.
Monitor batteries while charging.

Never:

Overcharge or over-discharge a battery.
Leave batteries charging unattended.
Charge damaged cells.
Use incompatible charging equipment.

Safe Storage & Transportation

Improper storage is one of the leading causes of accidental battery incidents.

Never carry loose batteries in:

Pockets
Backpacks
Purses
Toolboxes
Bags containing metal objects

Contact with keys, coins, tools, or other conductive materials can create a short circuit capable of causing severe burns, fire, or explosion.

Always transport batteries inside protective, non-conductive battery cases.

Store batteries in a cool, dry environment away from excessive heat, moisture, and direct sunlight.

Understanding Thermal Runaway

Thermal runaway is a rapid chain reaction that causes a battery to generate excessive heat, potentially resulting in venting, fire, or explosion.

It may be caused by:

Overcharging
Short circuits
Physical damage
Excessive temperatures
Internal battery failure

Reducing these risks begins with proper charging, careful handling, and correct battery storage.

Never Do the Following

To reduce the risk of injury or property damage, never:

Short circuit a battery.
Crush, puncture, or modify the cell.
Expose batteries to fire, water, or excessive heat.
Charge or discharge outside the manufacturer's specifications.
Dispose of lithium-ion batteries in household trash.

Recycle batteries only through approved recycling facilities.

If a Battery Fails

Immediately stop using any battery that becomes unusually hot, swells, leaks, hisses, or emits smoke.

If it can be done safely:

Move the battery to a non-flammable surface such as concrete or sand.
Keep it away from combustible materials.
Allow the battery to cool from a safe distance.

For lithium-ion battery fires, an ABC dry chemical extinguisher may be used. Large amounts of water may also be effective for cooling lithium-ion cells and helping prevent fire spread. Continue monitoring the battery after the incident, as damaged cells may reignite.

If the fire cannot be safely controlled, evacuate the area immediately and contact emergency services.

CH-AmpX Product Disclaimer

CH-AmpX supplies lithium-ion batteries and battery components intended for knowledgeable users and professional battery pack builders.

Customers are responsible for ensuring that all batteries are used, charged, stored, transported, and installed according to manufacturer specifications, industry best practices, and applicable regulations.

CH-AmpX shall not be held liable for any injury, property damage, equipment failure, financial loss, or other damages resulting from:

Improper handling or misuse
Incorrect charging practices
Unauthorized modification
Improper storage or transportation
Failure to follow recommended safety procedures
Use outside manufacturer specifications

By purchasing from CH-AmpX, you acknowledge the inherent risks associated with lithium-ion batteries and accept full responsibility for their safe handling and use.

View Complete Safety Guide

Weight	152.118 lbs
Dimensions	24.606 × 7.795 × 5.591 in
