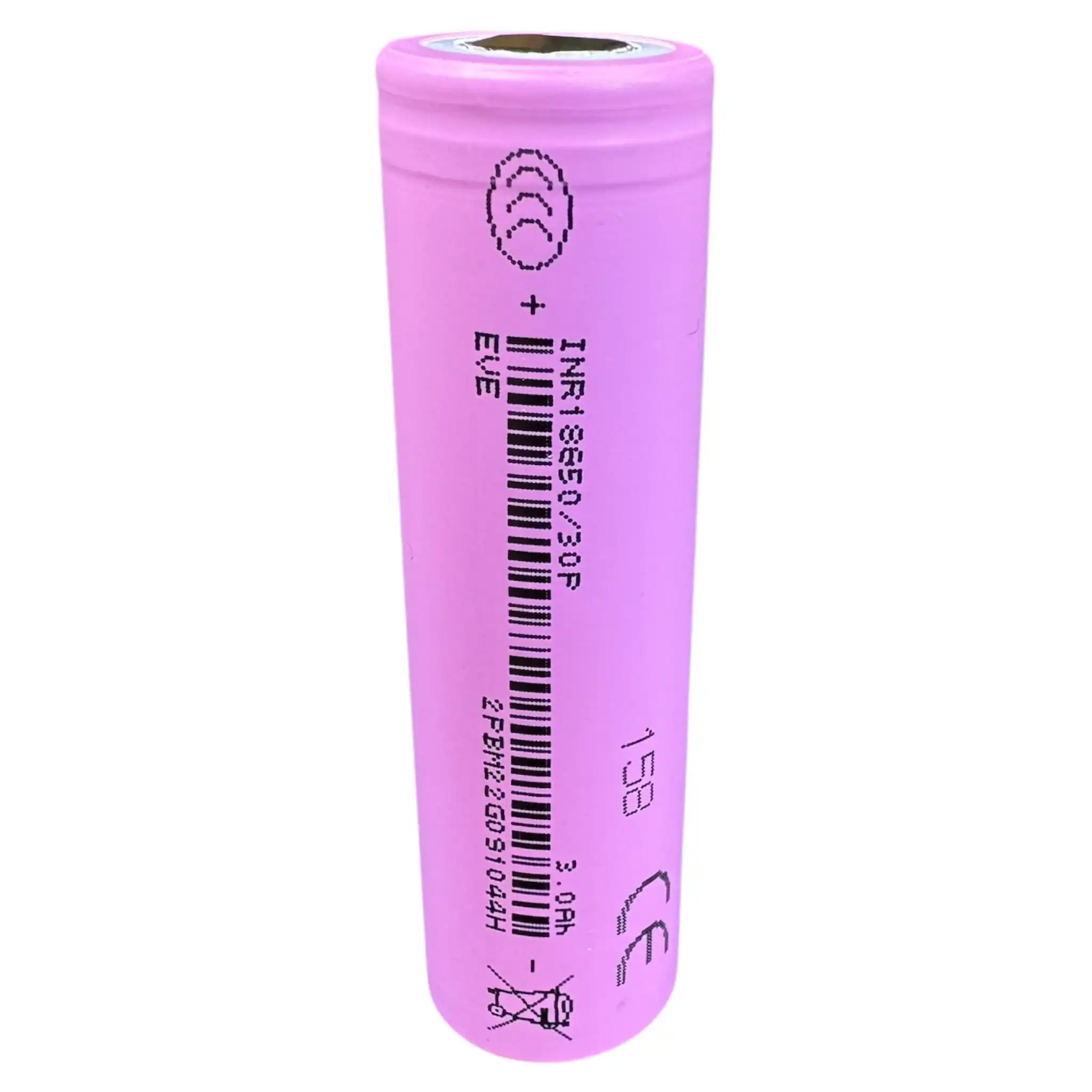

EVE 30P 18650 3000mAh 30A
EVE 30P 18650 3000mAh 30A. High-performance cell for demanding battery packs and DIY builds.
Technical Specifications
| Model | EVE 30P 18650 3000mAh 30A |
| Format | 18650 |
| Nominal Capacity | 3000mAh |
| Discharge Current | 30A |
| Brand | EVE |
Safety Warning
Unprotected cell. Always use with a BMS. Never short-circuit or overcharge. Keep away from fire and extreme heat. Not for use in e-cigarettes or similar devices.
Cell Specification
| Item | Specification and comments |
|---|---|
| Model | INR18650-30P – cylindrical lithium-ion rechargeable cell |
| Nominal capacity | 3000mAh – Standard charge then 0.2C (600mA) discharge to 2.5V at 25±2°C |
| Minimum capacity | 2900mAh – measured under standard charge / 0.2C discharge conditions |
| Nominal voltage | 3.6V |
| Energy | 10.8Wh (nominal) |
| Standard charge method | CCCV, 1.5A to 4.20V, then CV at 4.20V until current ≈ 100mA, 25±2°C |
| Rapid charge | CCCV, 3.0A to 4.20V, CV to 100mA, 25±2°C |
| Charge cut-off voltage | 4.20V |
| Discharge cut-off voltage | 2.50V |
| Standard discharge current | 0.2C (600mA) to 2.5V |
| Max. continuous discharge current | 15A – cell surface temperature ≈75°C |
| AC internal resistance | ≈35mΩ – AC 1kHz, after standard charge at 25±2°C |
| Cell weight | ≈48g (typical) |
| Cell dimension | Diameter: 18.40 ± 0.20mm; Height: 65.10 ± 0.20mm (including tube) |
| Operating temperature – charge | 0 to 45°C (cell surface) |
| Operating temperature – discharge | -20 to 60°C (cell surface) |
| Storage temperature | 1 year: -20~25°C; 3 months: -20~45°C; 1 month: -20~60°C (at 30–50% SOC) |
